MIPI UFS协议分析仪 M-PHY UFS and UniPro 协议分析仪 UFS2.x/3.0 Protocol Analyzer

收藏
商品说明

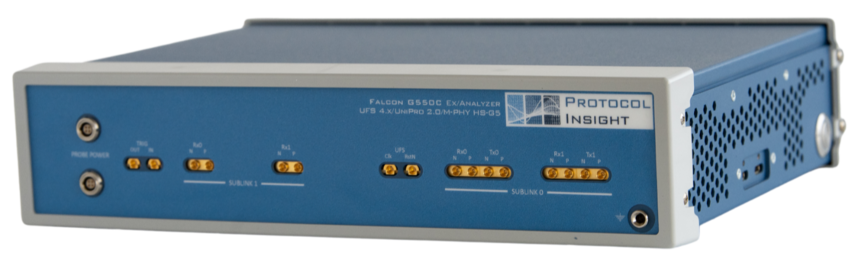

MIPI MPHY UFS协议分析仪Falcon G400 series with Trace Validation provides complete protocol debug and analysis of UFS and UniPro devices




                       Universal Features for both G400 and G450:
                       Supports MIPI M-PHY v4.1 HS-G4 and UniPro v1.8
                       Speed: PWMG1-PWMG5, HSG1-HSG4 and Rate Series A & B
                       Link Width: x1 and x2
                       LUN: 0-7, plus boot, RPMB, UFS Device, Report LUN and Agnostic
                       Traffic Class: TC0
                       Transmission Modes: Auto/NonAuto
                       Scrambling
                       Trace capture memory depth: 8 GB
                       Thunderbolt 3 connectivity
                       Protocol support: UFS 2.x/UFS3.0
                       Protocol support: UniPro 1.6x/UniPro 1.8
                       Compliance support: UFS 2.x/UFS3.0
                       Conformance support: UniPro 1.6x/UniPro 1.8


UFS协议分析仪 UFS Protocol Analyzer Falcon G400 Features:
                       Full line rate data capture
                       Protocol decode
                       Protocol listing
                       Hardware Trigger
                       Hardware Filter
                       Traffic overview
 Event Viewer
 Displays traditional timing information plus a comprehensive overview of all events on the bus


Trace Validation
Analyzes bi-directional UniPro links
Complex state-machine analysis of protocol sequences and packet characteristics
Packet inspection rule checking based on the nature of the traffic
Perform validation against the specifications
